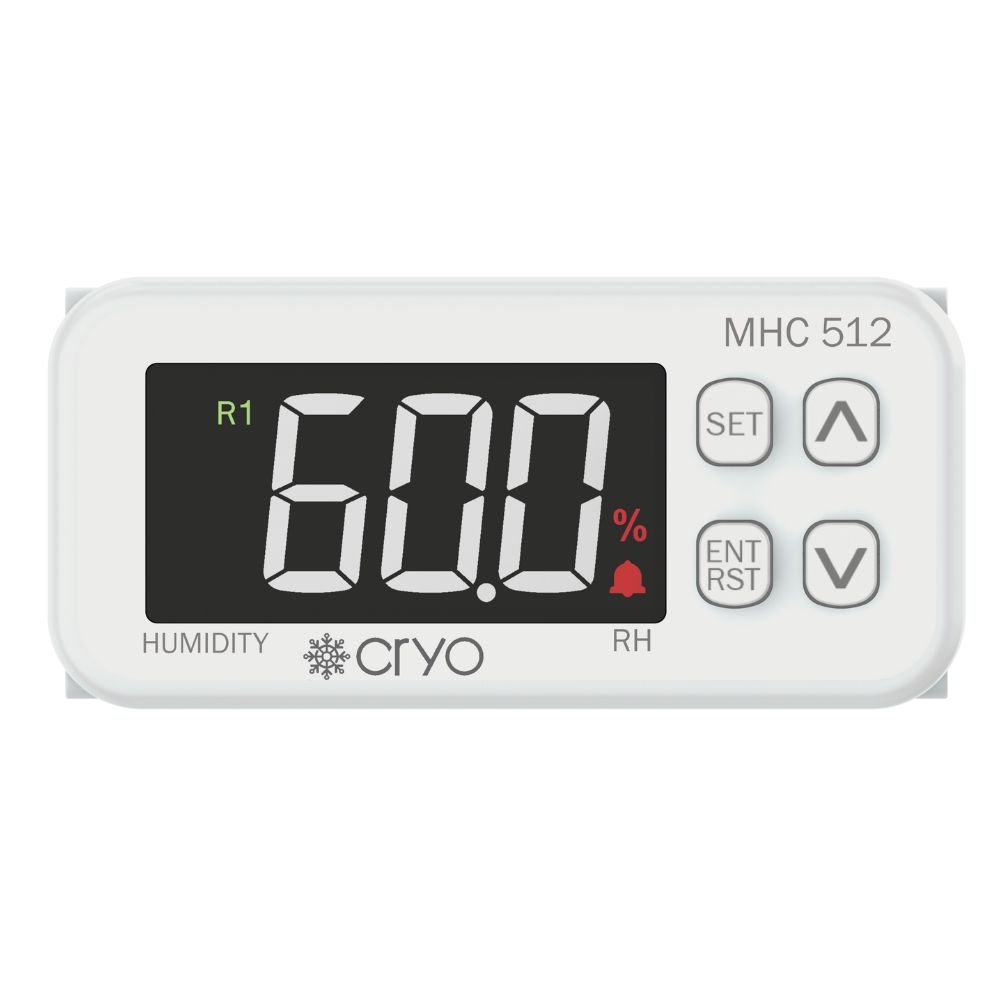

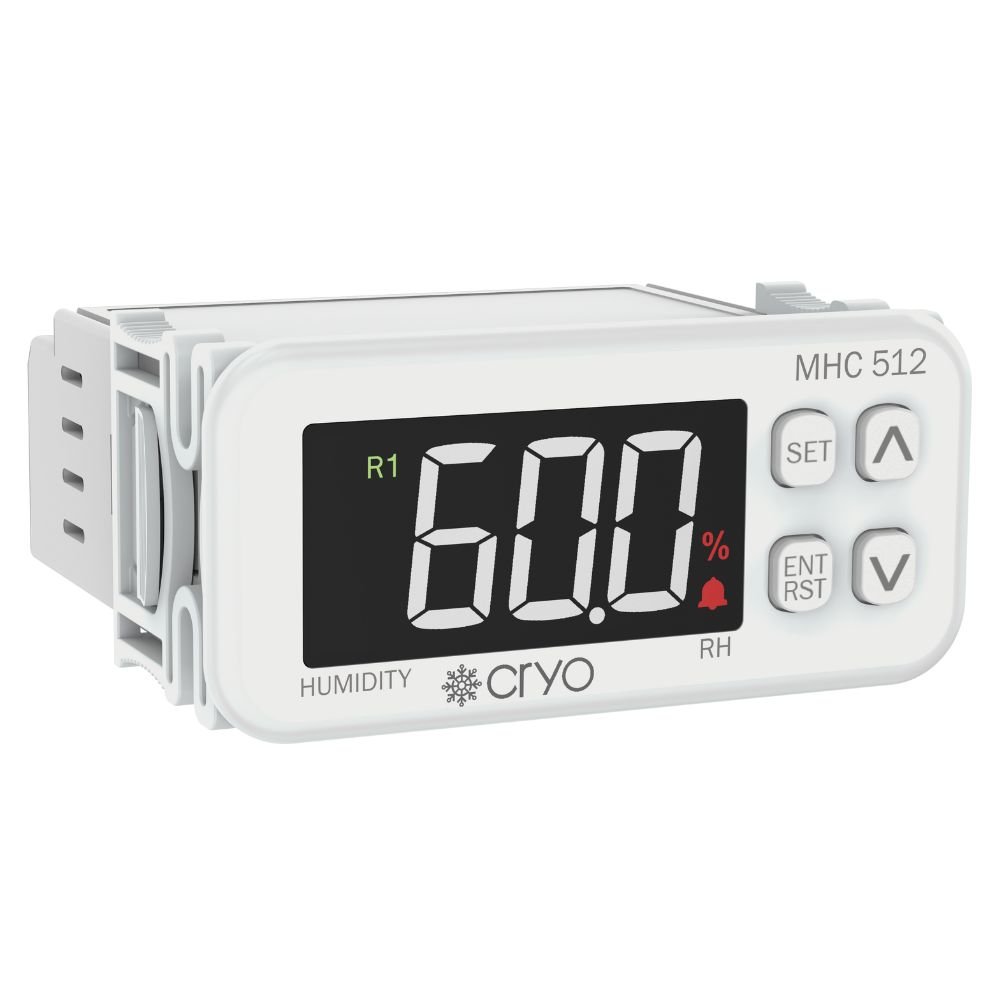

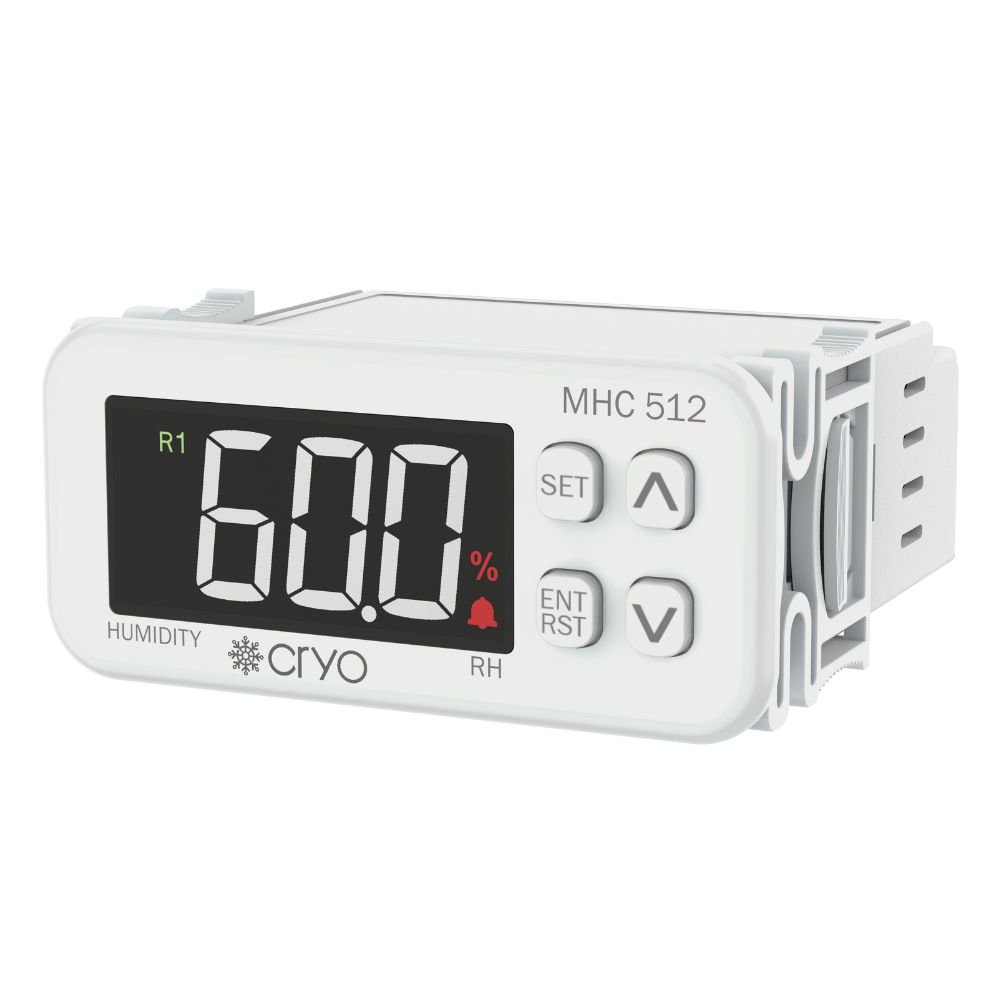

| Humidity Controller MHC-512 Technical Specification | |
| Display | 3 Digit 0.62” 7 Segment RED / WHITE Display |
| Dimension | Size (mm): 37 (H) x 78 (W) x 70 (D) mm |
| Panel Cutout | 30 X 71 mm |
| Input | Humidity Sensor (RH-100) |
| Range | 0.0 To 100.0 % RH |
| Supply | 230V AC ±20%, 50Hz / 24V DC / 12V DC (Factory Set) |
| Output | 2 Relay, (NO-C-NC) 1st Relay } 10A( Resistive load ) 2nd Relay for Alarm contact } 10A( Resistive load ) |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | Up to 95% RH Non Condensing |
